Physio-Control/Stryker LIFEPAK CR2 AED Demo Unit

Description

Physio-ControlCR2 AED Demo Unit(non-shocking device). The Demo resembles the Stryker LIFEPAK CR2 in form and function.

Demo offers a Bluetooth Functionto use in demonstrating the available product and functionality withAPPs and WiFI features of the live device (the trainer does not offer).

CR2 AED Demo Package Includes

• Device Demo Unit
• Bluetooth function
• One pair of adult/child training electrodes
• Manual

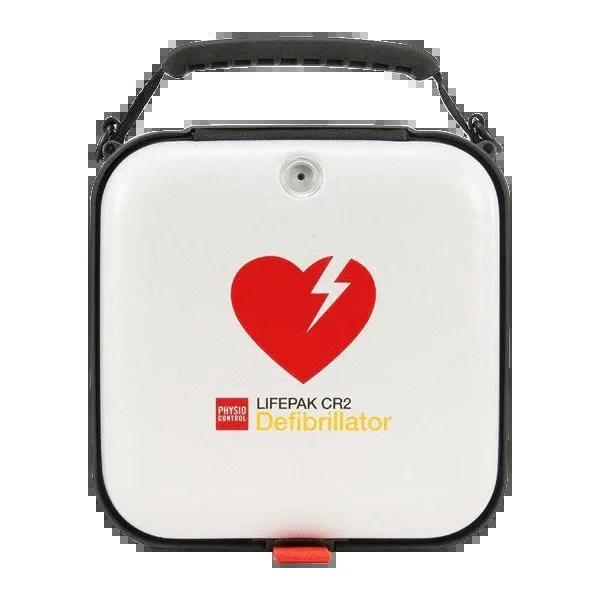

*Carrying Case / Carry Tote (11260-000048) – SOLD SEPARATELY*

Product Features:

• Demo device with one pair of adult/child training electrodes
• Simulates both semi-automatic and fully-automatic options
• Scenarios and features as a standard Trainer, controllable from the LCD panel located under the electrodes tray
• Uses the same voice prompts and CPR coaching verbiage as the live CR2 AED
• Provides live feedback for CPR rate, depth, and hand placement including a metronome
• Volume adjusts automatically depending on background noise

The LIFEPAK CR2 AED Demoprovides realistictraining in the use of the LIFEPAK CR2 AED withoutthe actual charge and discharge of electrical energy.Designed to simulate the appearance of the LIFEPAK CR2,the Trainer simulates its actual operation using thesame simple user interface. Pre-set demos can beprogrammed for fully automatic or semi-automaticmode to enable a quick demonstration of the keyLIFEPAK CR2 features,as well as the benefits ofcprINSIGHT™analysis technology.

Like the LIFEPAK CR2, the Trainer uses ClearVoice™technology to enable voice prompts to be heard clearlyeven in noisy environments for clear instruction.The LIFEPAK CR2 Trainer demo app can be used toset up automatic email notifications or send manualemail notifications via Bluetooth® from any Windows®,Android® or IOS® mobile device. This app simulatesthe automatic email notifications provided when aLIFEPAK CR2 is managed by LIFELINKcentral AEDprogram manager.

Simple and Affordable

The Trainer detects when pressure is placed on theQUIK-STEP™ training electrodes and automaticallyadvances through the scenario, eliminating the need for aremote control. A pause button on the unit enables toppingan in-progress scenario as needed. Plus, the trainer is cost-effective.Not only is it powered by four standard D-cellbatteries,butthe electrodes are affordable and reusable,simulating the rapid-access QUIK-STEP defibrillation ECGelectrodes unique to the LIFEPAK CR2 AED.

Scenario options
Device type: Semi, fully-automatic
Number of events: 1, 2, 3, 4, repeat
Shock advised: Yes, no
CPR metronome: Hands-only, 30:2
CPR time: Short, 60s, 120s, 180s
cprINSIGHT technology: On, Off
No CPR detected: On, Off
Motion detected: On, Off
Bilingual: On, Off
Second language: All available languages
Check breathing: On, Off

Batteries
6 volts/4 cells, range 3.3–6.6 Vdc. Four
nonchargeable D-cell alkaline batteries. New
batteries will provide no less than 100 hours of
continuous operation at volume 4.

Buttons
Language, power, child mode, shock

Physical characteristics

Height: 10.7 in (27.2 cm), with handle

Width: 8.6 in (21.8 cm)

Depth: 3.4 in (8.6 cm)

Weight: 3.9 lb (1.8 kg), with batteries
