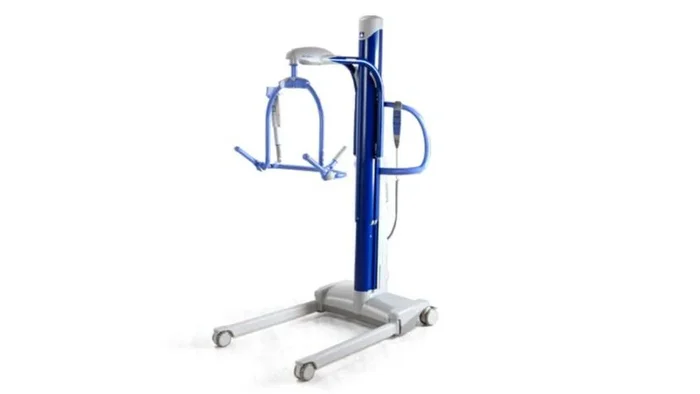

Arjo Maxi Move Floor Lifter Patient Lift – Medium Powered DPS

Description

The versatile Arjo Maxi Move Floor Lift sit-to-stand lift system will help simplify demanding everyday resident transfer and repositioning needs for patients up to 500 lbs. This medium-powered DPS Maxi Move patient lift allows caregivers to reposition patients within the Arjo sling, which minimizes the need for manual handling. Easy-to-use dual hand and mast controls enable caregivers to stay close and maintain optimal eye contact during transfer. The telescoping vertical mast provides ultimate stability as the patient is lifted. Available with or without a scale and in multiple castor types (including standard, low-height, and extra-low heights), the Maxi Move Lift can be adapted using a variety of spreader bars to accommodate patient lift and sit-to-stand needs.

Features:

• STABLE LIFTING -Stable vertical lifting action keeps the patient at a constant distancefrom the mast and in a stable position during lifting and transferring.
• PRECISION TRANSFERS -Integrated with the spreader bar is a powered dynamic positioningsystem (PDPS) that enables the patient to be repositioned in thesling, minimizing the need for manual handling.
• VERSATILITY -Optional interchangeable spreader bars give caregivers a flexiblesystem that also enables them to select from a comprehensiverange of slings.
• WIDE LIFTING RANGE -Dual action telescopic mast, which can be combined with anextended jib, offers a wide lifting range for lifting onto beds andfrom the floor.
• FLEXIBLE SYSTEM WITH SEVERAL OPTIONS AVAILABLE -Optional scale available, as well as three sizes of castors includingextra-low to facilitate access under low couches and trolleys.
• POWERED DPS -Powered dynamic positioning system (PDPS) minimizes manual handling and improves precision when positioning the patient.
• COMBI ATTACHMENT -The Combi attachment makes it smooth and easy to change between different spreader bars and stretcher frames.
• DUAL CONTROLS -Dual controls on the mast and the hand control. Using the hand control gives the caregiver the opportunity to move and stay close to the patientand maintain good eye contact throughout the lift and transfer process.
• TELESCOPIC VERTICAL MAST -Vertical mast provides stability while the patient is lifted.
• CASTOR SIZE -Three castor sizes available: standard, low and extra-low to facilitate access under low beds and trolleys.

Specifications

Weight and dimensions
Max safe working load kg	227 kg
Max safe working load lb	500 lb
Max safe working load if equipped with extended jib kg	130 kg
Max safe working load if equipped with extended jib lb	287 lb
Lifter weight (with spreader bar and battery) kg	70 kg
Lifter weight (with spreader bar and battery) lb	154 lb
Max lifting height mm	1575 mm
Max lifting height in	62 in
Min lifting height mm	225 mm
Min lifting height in	8,75 in
Lifting stroke mm	1350 mm
Lifting stroke in	53,12 in
Min total storage height mm	1402 mm
Min total storage height in	55,25 in
External width legs closed mm	718 mm
External width legs closed in	28,25 in
External width legs open mm	1196 mm
External width legs open in	47,12 in
Internal width leg closed mm	578 mm
Internal width leg closed in	22,75 in
Internal width leg open mm	1074 mm
Internal width leg open in	42,25 in
Leg clearance (floor to top of legs) – standard castors mm	115 mm
Leg clearance (floor to top of legs) – standard castors in	4,5 in
Leg clearance (floor to top of legs) – low castors mm	101 mm
Leg clearance (floor to top of legs) – low castors in	4 in
Leg clearance (floor to top of legs) – extra low castors mm	57 mm
Leg clearance (floor to top of legs) – extra low castors in	2,25 in
Chassis clearance (floor to bottom of chassis) – standard & low castors mm	25 mm
Chassis clearance (floor to bottom of chassis) – standard & low castors in	1 in
Chassis clearance (floor to bottom of chassis) – extra low castors mm	19 mm
Chassis clearance (floor to bottom of chassis) – extra low castors in	0,75 in
Lifter length mm	1118 mm
Lifter length in	44 in
Turning diameter mm	1222 mm
Turning diameter in	48 in
Electrical
Lifter protection class	IPX4
Hand control protection class	IPX7
Battery	24V 4Ah
